Moulds & Mould Equipment
Mould Holders
The mould holder carries the mould halves on the section, sets their alignment to the machine, and clamps them closed through every forming cycle.
A mould holder locates the mould to the section, and it holds both halves closed on the parting line while the glass is formed. Both jobs come down to the same machined features: the bores, the pivot faces and the clamping faces. Get them right and the halves meet on the same plane, cycle after cycle. Get them wrong and the seam shows it.
Holders are built for the blank side and the blow side, in single, double, triple and quad gob layouts, and to the mounting geometry of the section hardware you already run. Cast iron, SG iron or aluminium, as the job requires. We read and edit digital drawings in-house, machine to your drawing, and verify critical dimensions against it before the holder leaves the shop.
What you get
Built for Repeatable Production
Alignment to the Section
Bore positions and locating faces are machined to the drawing, so the holder sits on the section without coaxing.
Clamping and Parting Line
Pivot and clamp faces are finished so the mould halves close on the same plane, which is what keeps the seam clean.
Blank Side and Blow Side
Holders are made for either side of the section, in cast iron, SG iron or aluminium as the job requires.
Built to Your Drawing
Digital drawings are read and edited in-house, so a repeat holder matches the holder it replaces and fits your existing equipment.

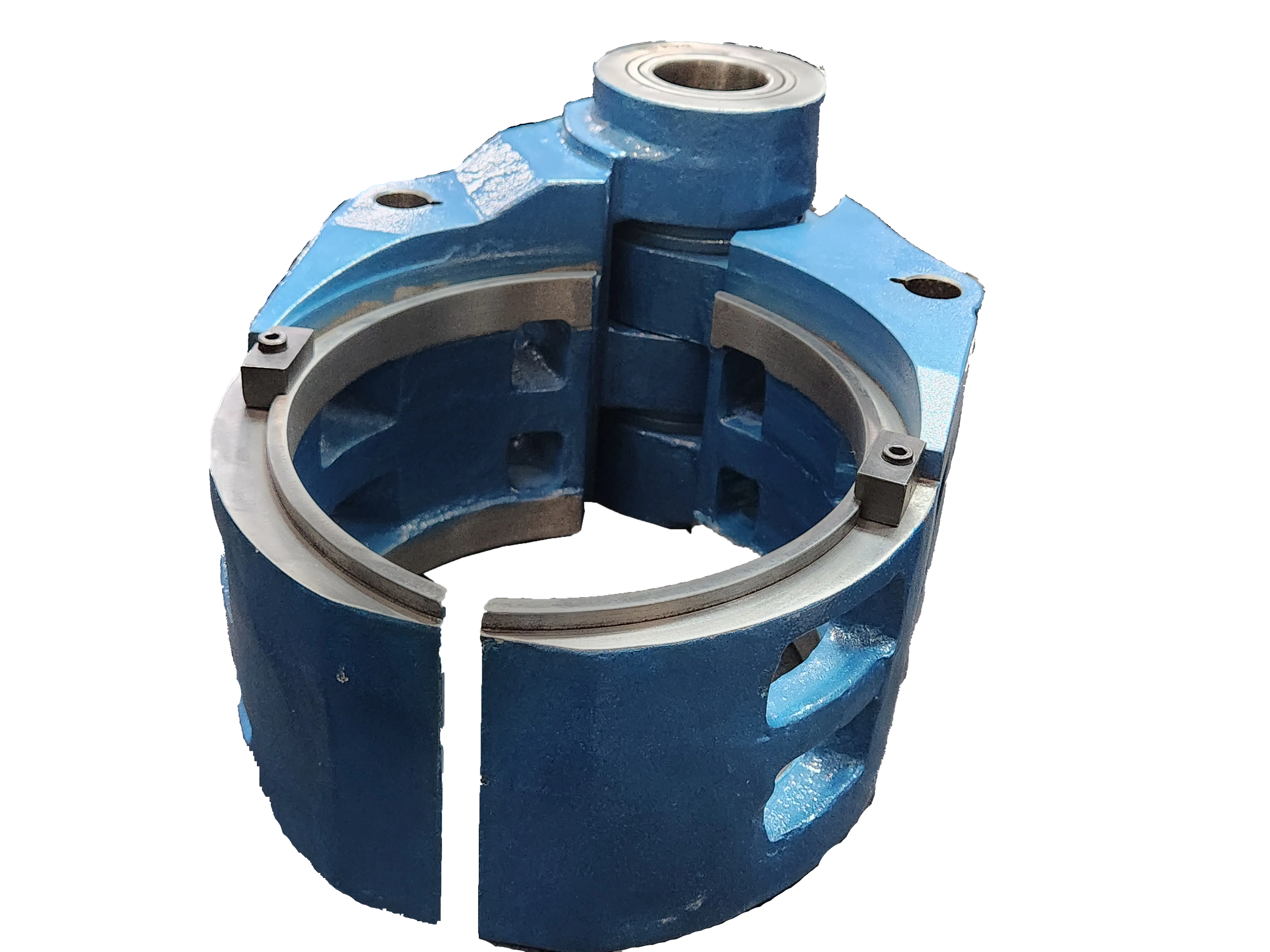

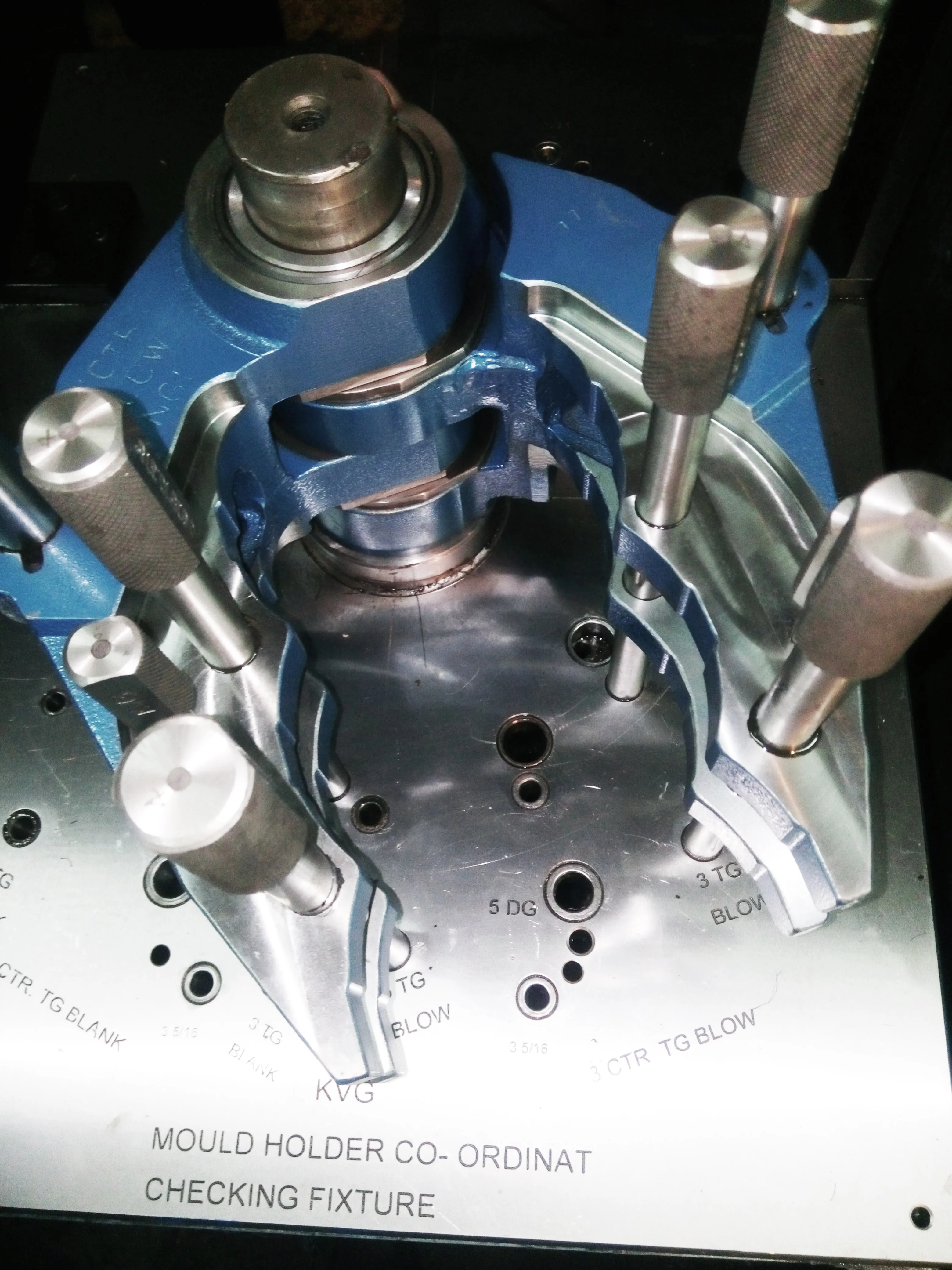

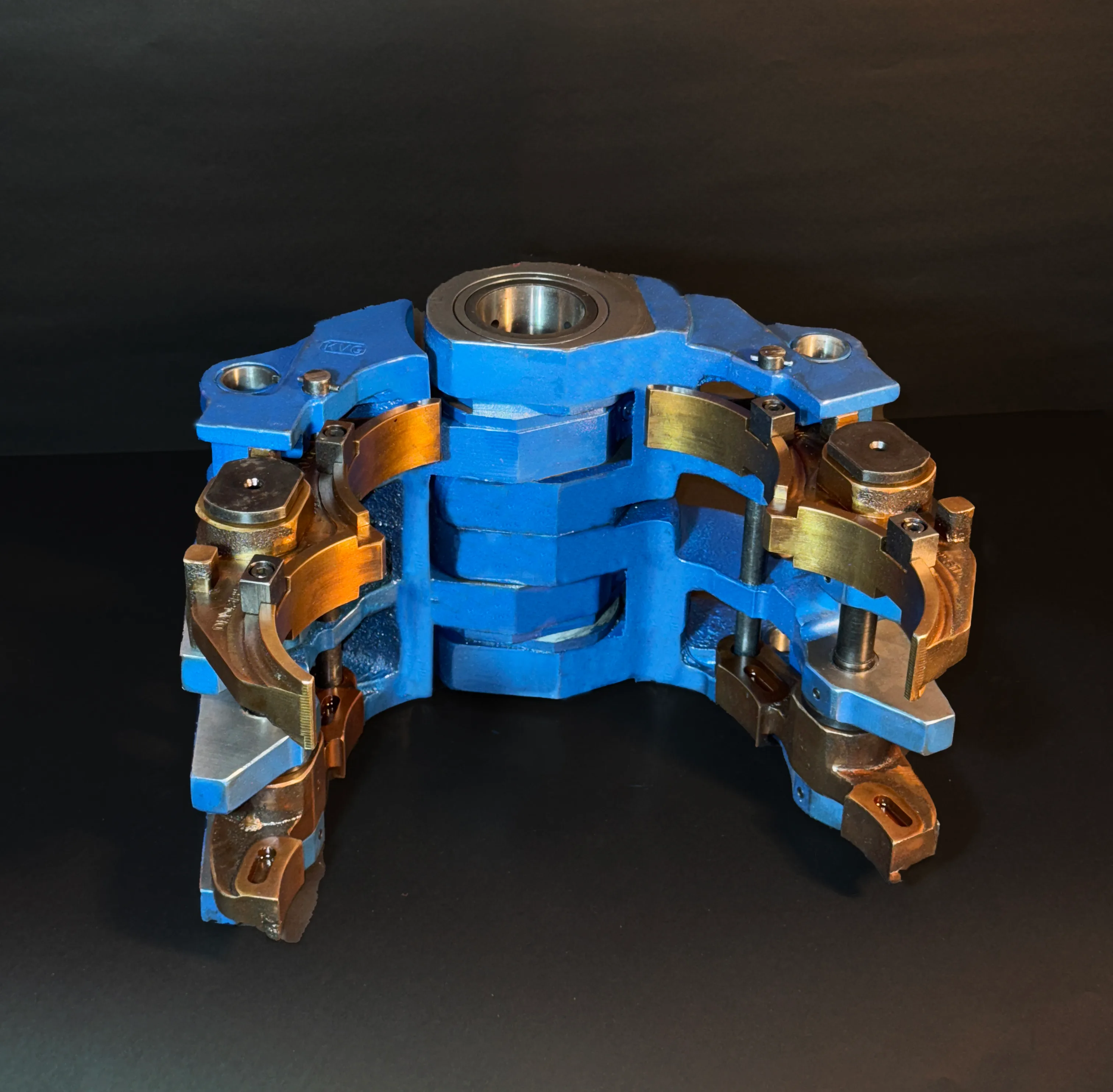

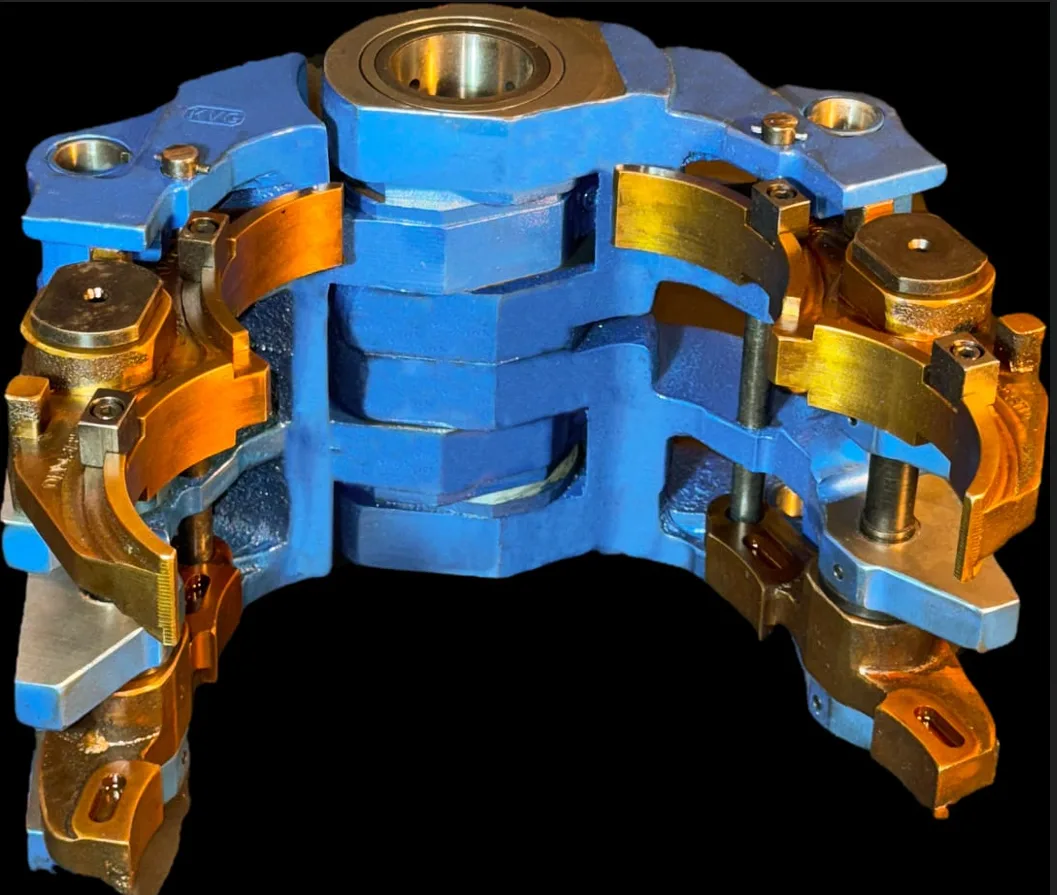

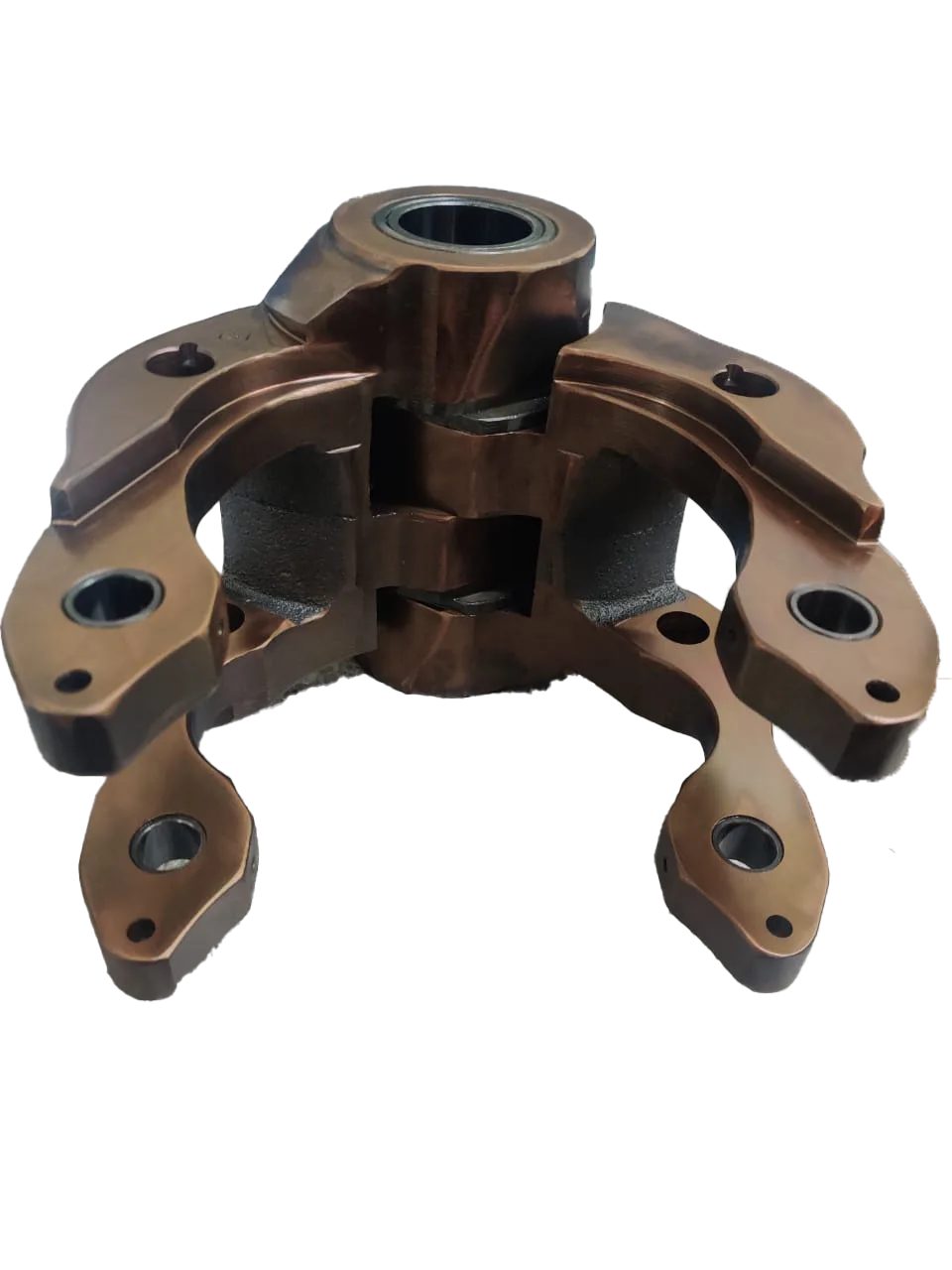

Gallery
Mould Holders in Detail
Photographs show KVG-manufactured parts. Configurations are made to your drawing — send us your part reference for an exact quote.
